Diagnostic Trouble Code (DTC) Information KVM-U300055
Condition

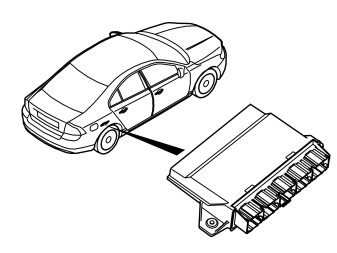

In order for the Keyless vehicle module (KVM) to function in the vehicle, it must be programmed with codes for remote keys and with codes for the immobilizer.
The diagnostic trouble code (DTC) is stored if the control module detects that:
- The control module has not been programmed.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Control module supplied with power.
NOTE:
The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.
The diagnostic trouble codes (DTCs) are erased after the correct data has been obtained.
Substitute Value
- None.
Possible Source
- The control module has not been programmed.
Fault symptom[s]
- No keyless functionality
