No Communication

The cause of the fault is probably that no software has been downloaded or that software downloading has failed after Remote Digital Audio Receiver (RDAR) replacement.

HINT: When downloading software after replacing a control module, the serial number of the control module is stored in the central electronic module (CEM). This is so that the Infotainment Theft Protection (ITP) function can approve the control module.

• Load new software into the control module.

If the fault persists after software download, try replacing the Remote Digital Audio Receiver (RDAR).

Other information

• see SATELLITE RADIO CONTROL MODULE (2007-2011)

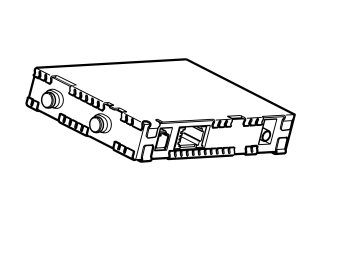

Fig 1: Identifying Remote Digital Audio Receiver Module (RDAR)

Courtesy of VOLVO CARS CORPORATION

• Continue

  Refer to VERIFICATION
