Component Location, Audio Module (AUD)

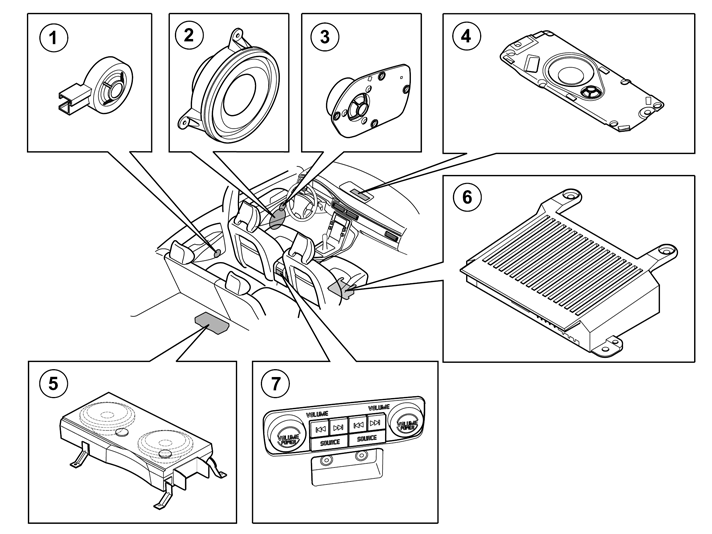

Fig 1: Identifying Audio Module (AUD) Components
GLL177055Courtesy of VOLVO CARS CORPORATION

Overview

  1. Treble speaker, rear door (certain models only).
  2. Bass and mid-range speakers, front door
  3. Mid-range speakers, front door (certain models only).
  4. Center speaker (certain models only).
  5. Subwoofer (certain models only).
  6. Audio Control Module (AUD).
  7. Headphone panel (certain models only).
