Position Sensor 7/119, 7/121: General

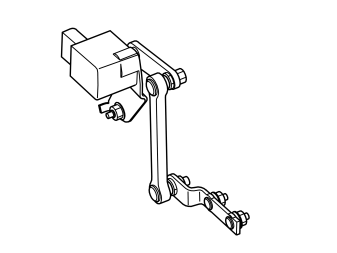

Fig 1: Position Sensor 7/119, 7/121
GLL153793Courtesy of VOLVO CARS CORPORATION

Type

Resistance sensor.

characteristic

Resistance between #C1:1 and #C1:4 changes linearly depending on angle.
