Replacing A Component

High Level Display Front (HLDF) has registered an internal error.

If the fault is intermittent, it has been registered previously but is no longer present. Intermittent faults can be caused by interference at start up of the High Level Display Front (HLDF) or may be a different type of fault which occurs on different occasions. The fault is evaluated depending on how it occurs.

If the fault recurs, replace High Level Display Front (HLDF).

In case of permanent malfunction, replace High Level Display Front (HLDF).

Remedy as necessary.

Other information

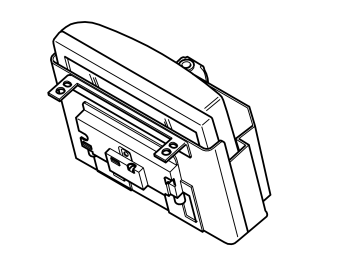

Fig 1: Identifying High Level Display Front (HLDF)
GLL152839Courtesy of VOLVO CARS CORPORATION
