Diagnostic Trouble Code (DTC) Information KVM-U201F87

Condition

The control module checks the communication with the receiver.

The diagnostic trouble code (DTC) is stored if the control module detects that:

Interrupted or no communication with Remote Keyless Entry (RKE).

The control module's test for the diagnostic trouble code (DTC) starts in the event of:

Communication with the receiver.

NOTE:

The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.

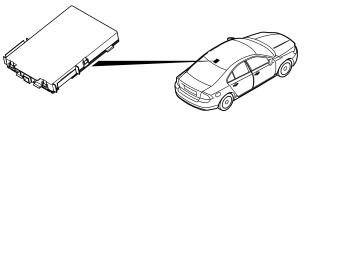

Fig 1: Locating External Receiver

Courtesy of VOLVO CARS CORPORATION

Substitute Value

None.

Possible Source

Internal fault in Remote Keyless Entry (RKE).
Internal error in Keyless vehicle module (KVM).

Fault symptom[s]

Cannot be operated by remote control
No keyless functionality
