Diagnostic Trouble Code (DTC) Information KVM-B10D324
Condition

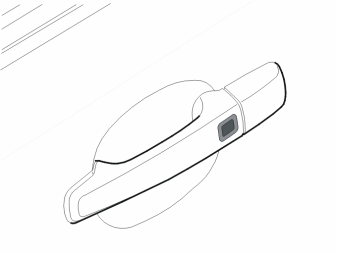

When the lock button on the door handle is depressed, a switch is activated and a counter starts.
The diagnostic trouble code (DTC) is stored if the control module detects that:
- Lock button has been activated for longer than 2 minutes.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Activation of the lock button.
NOTE:
The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.
Substitute Value
- None.
Possible Source
- Damaged switch.
- Lock button depressed for longer than 2 minutes.
- The signal cable is short-circuited to ground.
Fault symptom[s]
- Not possible to lock with outer lock button
