Installing the rear engine mounting

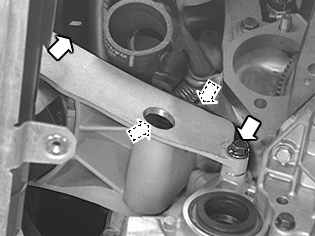

Fig 1: Engine Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the vacuum hose for the engine mounting
• the rear engine mounting on the transmission
• the engine mounting screws. Tighten to 50 Nm  .
