Installing the service clips

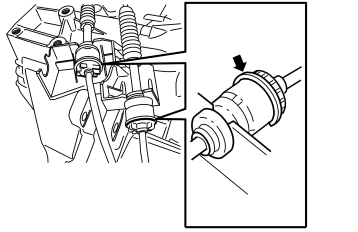

Fig 1: Gear Selector Cable And Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

The automatic transmission has one gear selector cable while the manual transmission has two cables.

Ensure that the gear selector cable is locked in position before installing the blue clip. Press the clip into place as shown in the illustration.

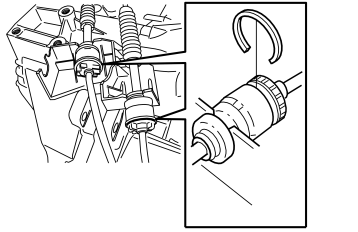

Fig 2: Clip Positioned In Groove

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the clip is positioned in the groove as shown in the illustration.
