Removing the Steering Wheel Lock Unit

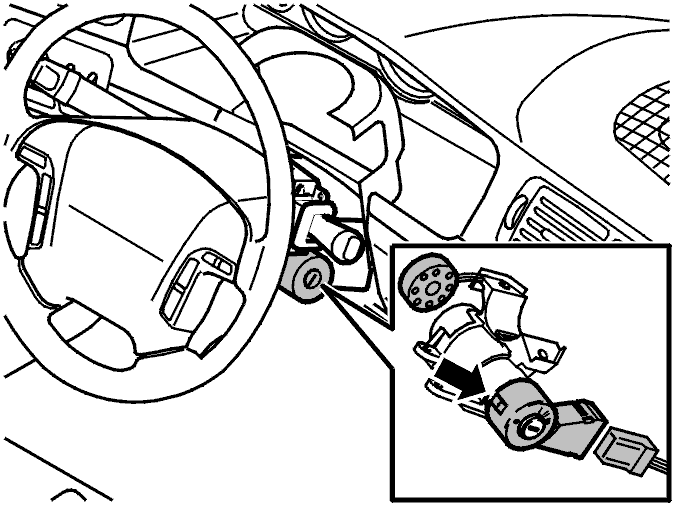

Fig 1: Identifying Snap Fastener & Steering Wheel Lock Unit
GLL104618Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connectors.

Press in the snap fastener and remove the steering wheel lock unit.
