Plastic Parts

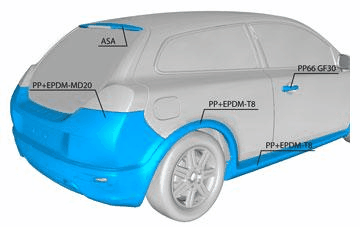

Fig 1: Vehicle Body Exterior Plastic Part Locations (1 Of 2)
GLL158835Courtesy of VOLVO CARS CORPORATION

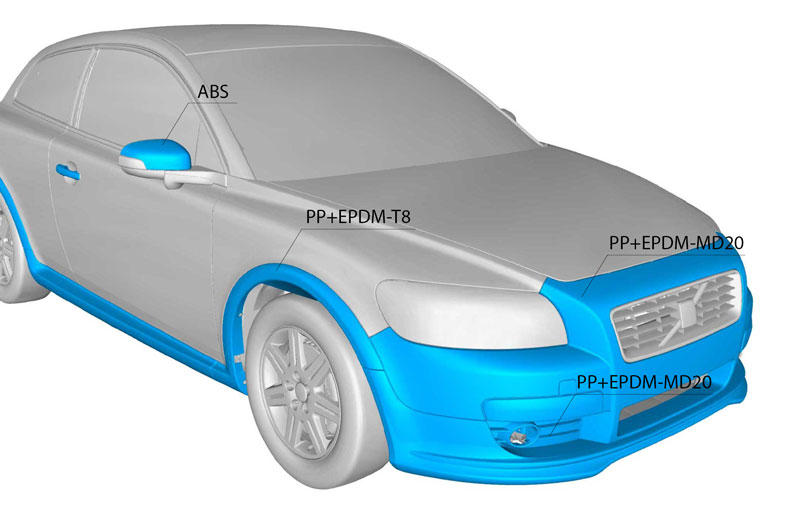

Fig 2: Vehicle Body Exterior Plastic Part Locations (2 Of 2)
GLL173138Courtesy of VOLVO CARS CORPORATION
