Check The Start System (2007): Verification: Verification

HINT: After carrying out the repair, check that the fault has been remedied.

Fig 1: Identifying Ignition In Start Position

Courtesy of VOLVO CARS CORPORATION

Fig 2: Identifying Connector(s) Reinstallation

Courtesy of VOLVO CARS CORPORATION

• Ignition off.
• Reinstall the connectors, components etc.
• For vehicles with automatic transmission:

  The gear selector shall be in position P or N.

• For vehicles with manual transmission:

  The gear lever shall be in neutral position.

• Parking brake applied.
• The battery shall be fully charged.

  Turn the ignition key to start position (key position III).

  The starter motor must run in starting position.

Does the starter motor work?

• YES

  VERIFIED:  Troubleshooting has been completed.

• NO

  Refer to OTHER FAULT-TRACING

HINT: After carrying out the repair, check that the fault has been remedied.

Fig 1: Identifying Ignition In Start Position

Courtesy of VOLVO CARS CORPORATION

Fig 2: Identifying Connector(s) Reinstallation

Courtesy of VOLVO CARS CORPORATION

• Ignition off.
• Reinstall the connectors, components etc.
• Parking brake applied.
• The battery shall be fully charged.
• The gear selector shall be in position D.
• Turn the ignition key to start position (key position III).

  The engine should not be able to be started.

• The gear selector shall be in position P or N.
• Turn the ignition key to start position (key position III).

  It should now be possible to start the engine.

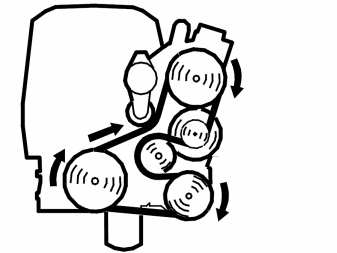

  Fig 3: Identifying Belt Routing

  Courtesy of VOLVO CARS CORPORATION

Is the function OK?

• YES

  VERIFIED:  Troubleshooting has been completed.

• NO

  Refer to OTHER FAULT-TRACING
