Phone Module (PHM): Removal: Notes

NOTE:

Removal steps in this procedure may contain installation details.

Fig 1: Identifying Ignition In OFF Position

Courtesy of VOLVO CARS CORPORATION

Remove glove compartment, see GLOVE COMPARTMENT

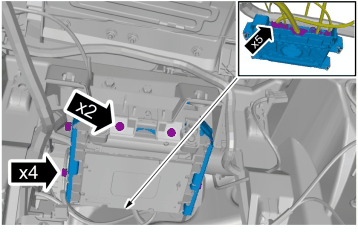

Fig 2: Identifying Phone Module (PHM) Bolts

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

NOTE:

Make sure that the component terminals are not bent or damaged.

NOTE:

Make sure that the optical connectors are clean and free of foreign material.
