Filling With Oil

CAUTION:

Absolute cleanliness is essential during this work.

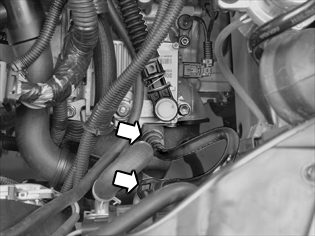

Fig 1: Identifying Oil Cooler Hoses, Coolant Hoses And Gear Selector Cable

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use only transmission oil, P/N 116 1540-8 (1 liter container), 116 1640-6 (4 liter container).

Fill with new oil to the volume previously noted.

Fill with oil through the connector sleeve for the return line in the transmission cover.

Install the oil return pipe for the oil cooler and the cover on the transmission.
