Location Of Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

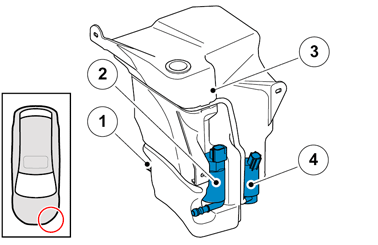

Fig 1: Identifying Washer Reservoir Components
GLL178351Courtesy of VOLVO CARS CORPORATION
  1. level sensor washer fluid
  2. washer fluid pump headlamp
  3. reservoir
  4. washer fluid pump windscreen
