Location Of Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

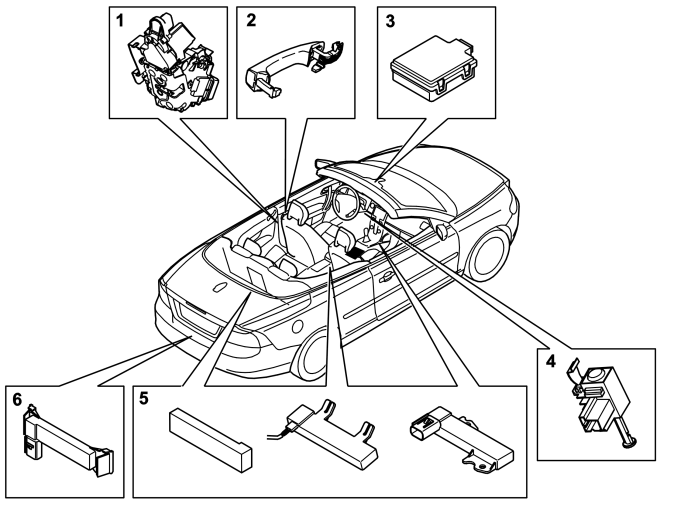

Fig 1: Identifying Keyless Vehicle Module (KVM) Components
GLL152447Courtesy of VOLVO CARS CORPORATION

Overview

  1. Lock unit
  2. Antenna, in the handle on the side doors
  3. Remote keyless entry (RKE)
  4. Clutch switch (manual transmission).
    NOTE:

    The stop lamp switch is used for cars with automatic transmissions.

  5. Antenna, in the passenger compartment
  6. Antenna, rear bumper
