Function Test

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS CORPORATION

• Ignition on.

  Check the left-hand antenna circuit by clicking on the VCT2000 symbol in VIDA (Volvo scan tool).

  Fig 2: Identifying VCT2000 Diagnostic Tool Symbol In VIDA (Volvo Scan Tool)

  Courtesy of VOLVO CARS CORPORATION

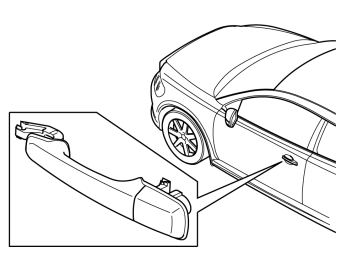

  Fig 3: Identifying Door Handle

  Courtesy of VOLVO CARS CORPORATION

Was the function OK?

• YES

  Refer to FAULT-TRACING INFORMATION

• NO

  Refer to CHECKING THE WIRING
