Upper Electronic Module (UEM) V70 Connector End View (4/70)

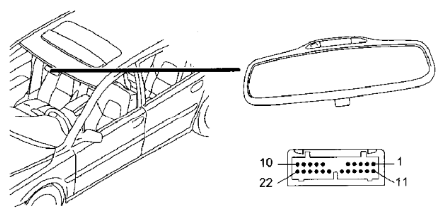

Fig 1: Upper Electronic Module (UEM) V70 Connector End View (4/70)

G10807673

Courtesy of VOLVO CARS CORPORATION
