Rocker Panel Reinforcement, Replacing

Pull out the damaged section.

Cut, grind or saw off the damaged sections.

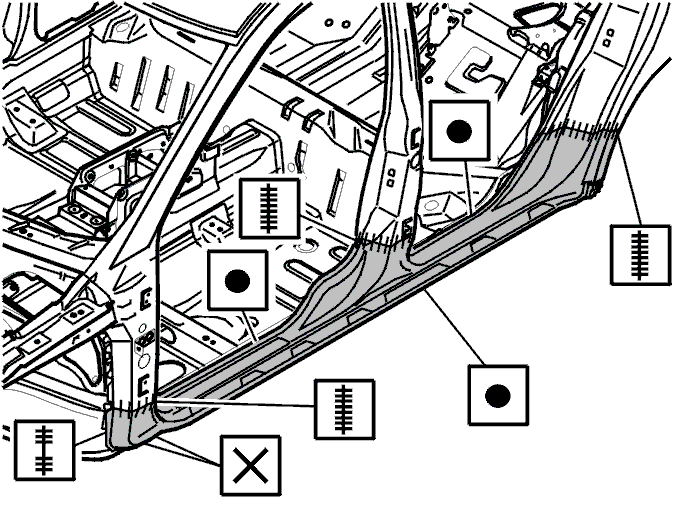

Fig 1: Sill Reinforcer Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Align the new sill reinforcer.

Weld into place.

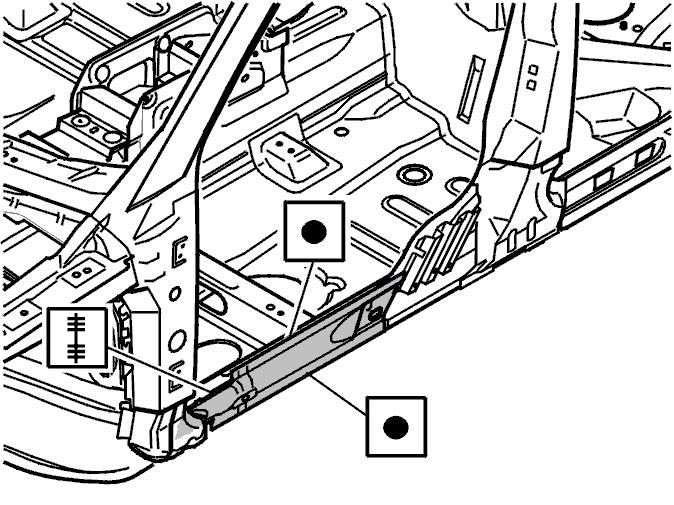

Fig 2: Outer Door Sill Panel Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Align the outer door sill.

Weld into place.

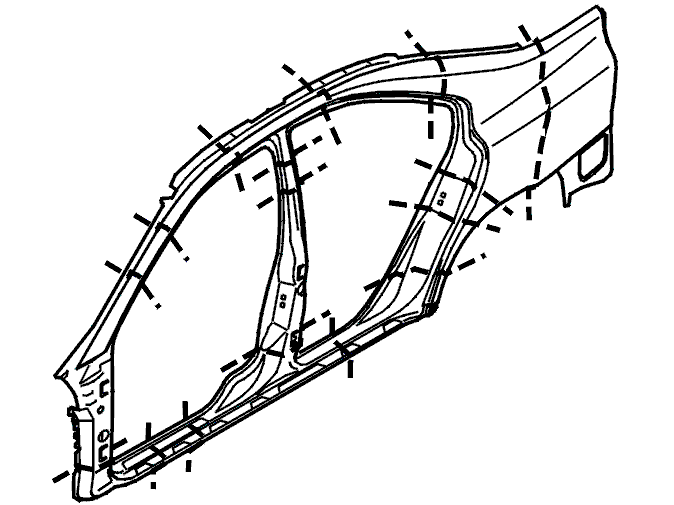

Fig 3: Alternative Body Side Cut Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Alternative cutting points.
