Installing the rear engine mounting

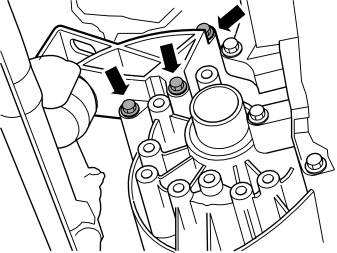

Fig 1: Identifying Rear Engine Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the rear engine mounting for the transmission to the engine mounting. Use 3 x M10 screws. Tighten
• the engine pad together with the heat deflector plate. Hold the engine pad limiter in place during installation. Use a tie strap.
