Installing the Rear Engine Mounting

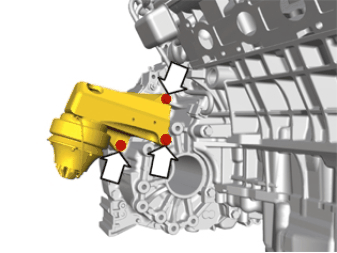

Fig 1: Identifying Rear Engine Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the rear engine mounting, 3 x M10, to the gear box. Tighten
• the screw for the engine pad, loosely.
