Brake Light Contact Connector End View (3/9)

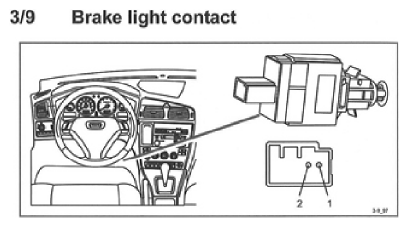

Fig 1: Brake Light Contact Connector End View (3/9)

G10808177

Courtesy of VOLVO CARS CORPORATION
