Removing the Right Engine Mounting

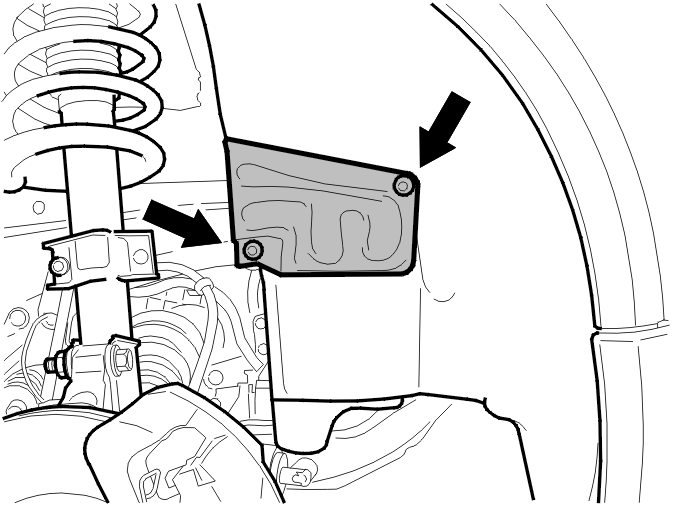

Fig 1: Identifying Fender Liner Plastic Nuts And Protective Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the right lower front part of the fender liner.

Remove:

• the plastic nuts on the fender liner
• the protective plate.

Bend out the fender liner.

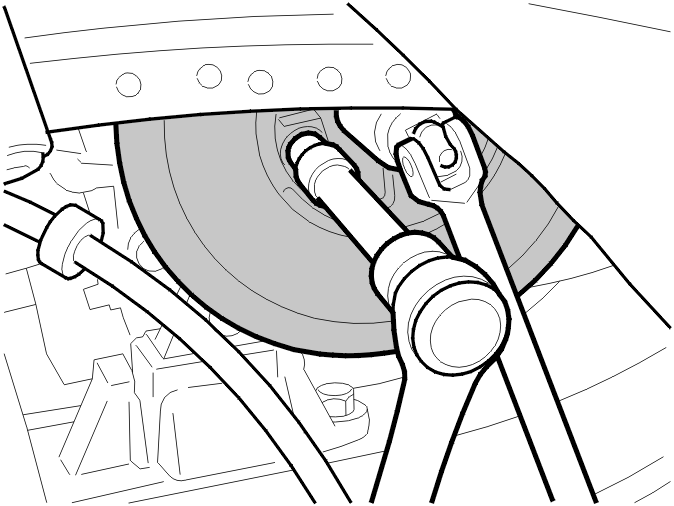

Fig 2: Counterholding Crankshaft Central Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 4 screws for the vibration damper. Counterhold the crankshaft central nut.

Remove the vibration damper.

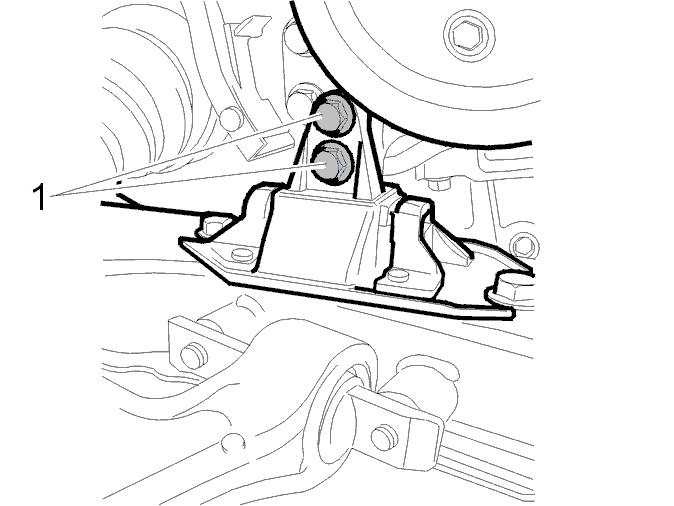

Fig 3: Identifying Right-Hand Engine Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 screws for the right hand engine mounting. (1)
