Installing the Control System Cover

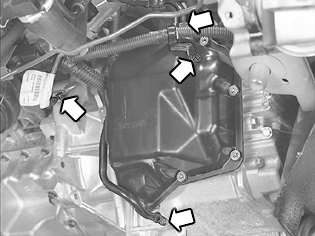

Fig 1: Control System Cover, Harness Clamp, Cooler Return Line And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the control system cover on the transmission. Tighten the screws alternately. Tighten to 12 Nm  . Torx TX 40.

Install:

• the oil pipe on the transmission with a new O-ring
• the return line to the control system cover
• the cable harness to the holder on the cover
• the ground lead for the transmission.
