Installing components on the engine and sub-frame

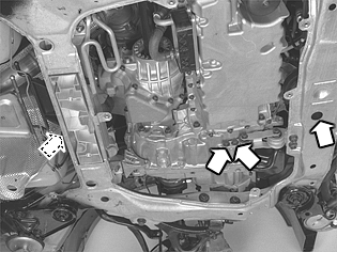

Fig 1: Engine Pads And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the 1 x M10 screw for the front engine pad. Tighten.

Loosely install the screw for the engine pad/steering gear.

Tighten the M10 screw for the rear engine pad.

Install the mounting for the engine stabilizer brace to the transmission. Use new screws. Tighten. See Summary of tightening torques for specific components .
