Side Members, Front: Dimensions

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from an edge.

Courtesy of VOLVO CARS CORPORATION

Symbol number 3 means that the measurement is taken from a cut mark.

Measurements are taken from the bottom of the recess, see illustration above.

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension in the illustration.

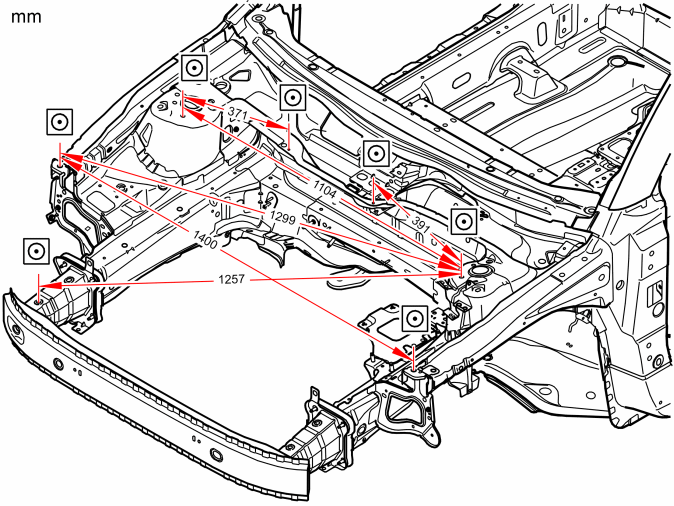

Fig 2: Front Side Members Dimensions And Measurement Locations (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

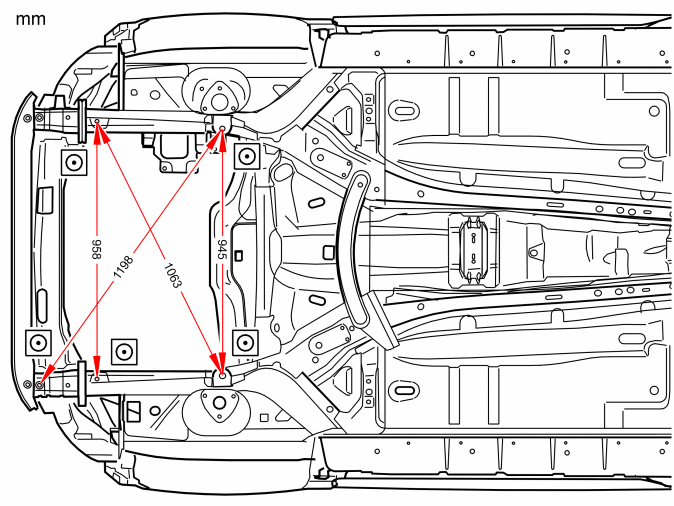

Fig 3: Front Side Members Dimensions And Measurement Locations (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

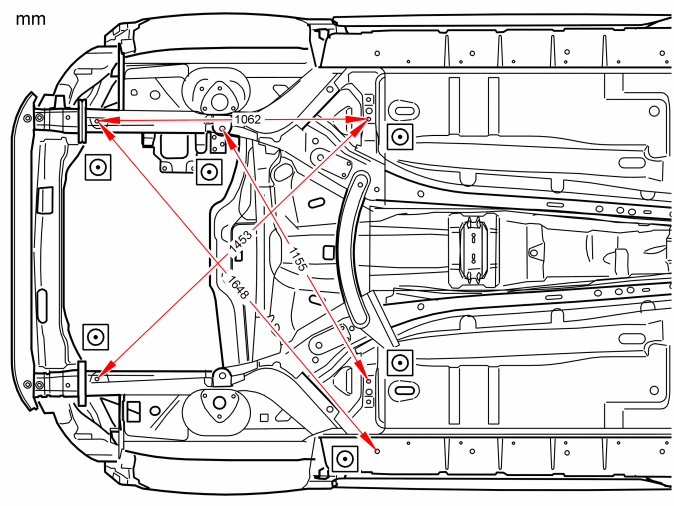

Fig 4: Front Side Members Dimensions And Measurement Locations (3 Of 3)

Courtesy of VOLVO CARS CORPORATION
