Generator - Removal And Installation: Electrical: Generator: Removal

Battery, disconnection, see BATTERY DISCONNECTING AND CONNECTING

Fig 1: Ignition Off And Disconnecting Battery

Courtesy of VOLVO CARS CORPORATION

Remove the auxiliaries belt, see ACCESSORY DRIVE BELT AND TENSIONER (B5254T3 AND B5254T7)

Follow instructions for lifting points body frame, see JACKING POINTS BODY

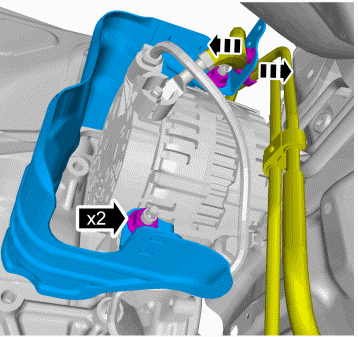

Fig 2: Removing Generator (1 Of 4)

Courtesy of VOLVO CARS CORPORATION

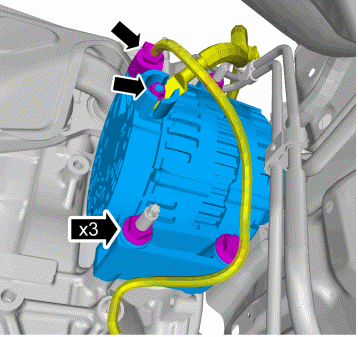

Fig 3: Removing Generator (2 Of 4)

Courtesy of VOLVO CARS CORPORATION

Torque:  M8

24 Nm

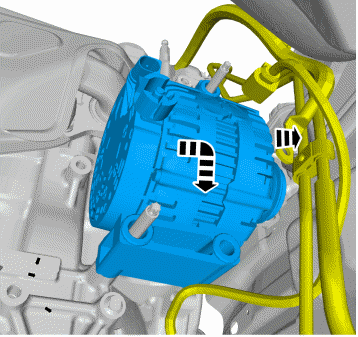

Fig 4: Removing Generator (3 Of 4)

Courtesy of VOLVO CARS CORPORATION

1. Torque:  Generator B+ terminal

   15 Nm

2. Torque:  M8

   24 Nm

Fig 5: Removing Generator (4 Of 4)

Courtesy of VOLVO CARS CORPORATION
