Body Side: Dimensions

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from an edge.

Courtesy of VOLVO CARS CORPORATION

Symbol number 3 means that the measurement is taken from a cut mark.

Measurements are taken from the bottom of the recess, see illustration above.

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension in the illustration.

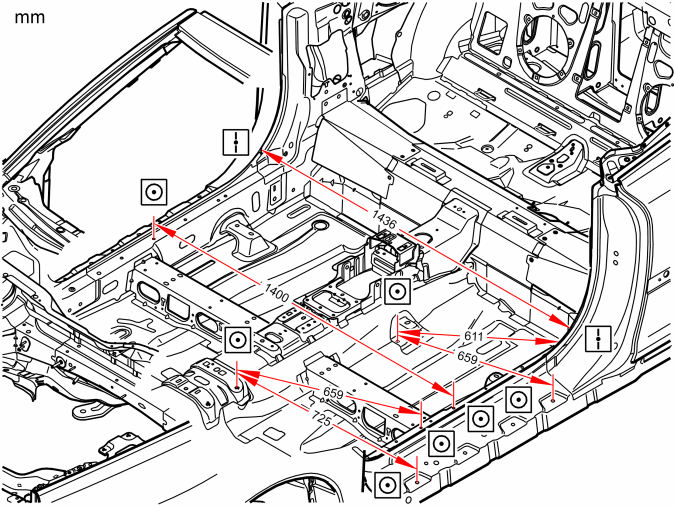

Fig 2: Body Side Position Dimensions And Measurement Locations (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

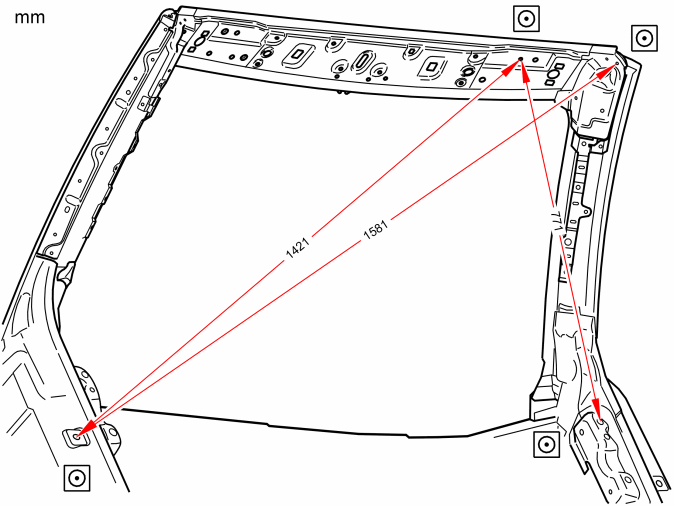

Fig 3: Body Side Position Dimensions And Measurement Locations (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

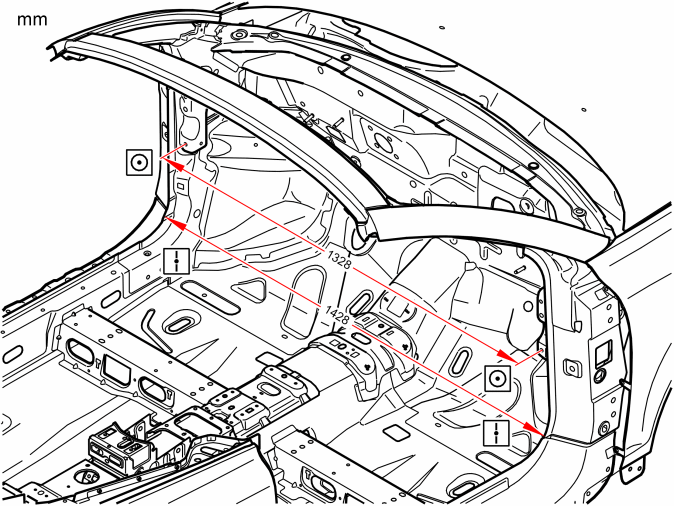

Fig 4: Body Side Position Dimensions And Measurement Locations (3 Of 3)

Courtesy of VOLVO CARS CORPORATION
