Removing cover for control system

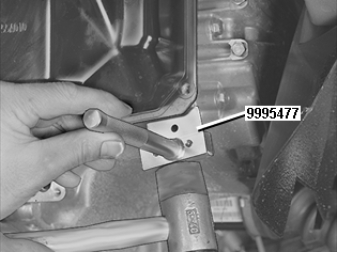

Fig 1: Identifying Gasket Wedge Tapped Into Joint
GLL109392Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cover.

Use gasket wedge 9995477 . Tap the wedge carefully into the joint between the cover and the transmission to ensure that the cover sealing flange is not distorted.
