Connecting the breakout box
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Check the control module and control module connectors to make sure that the male and female terminals are undamaged and secure (cannot be pressed in). Check that the cables to the female terminals are secured to the terminal pins.
- Connect adapter
9511504

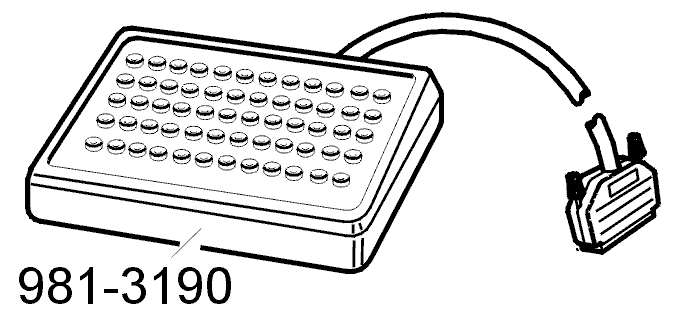

to the control module connector (wiring side). Connect breakout box
9511428
to the adapter.
- The breakout box is designed to facilitate reading off the control module input and output signals when the control module is connected; and the cable and component resistance when the control module is disconnected. The use of a breakout box reduces the risk of accidental short-circuits and damage to the connector pins.
