Adapter connection

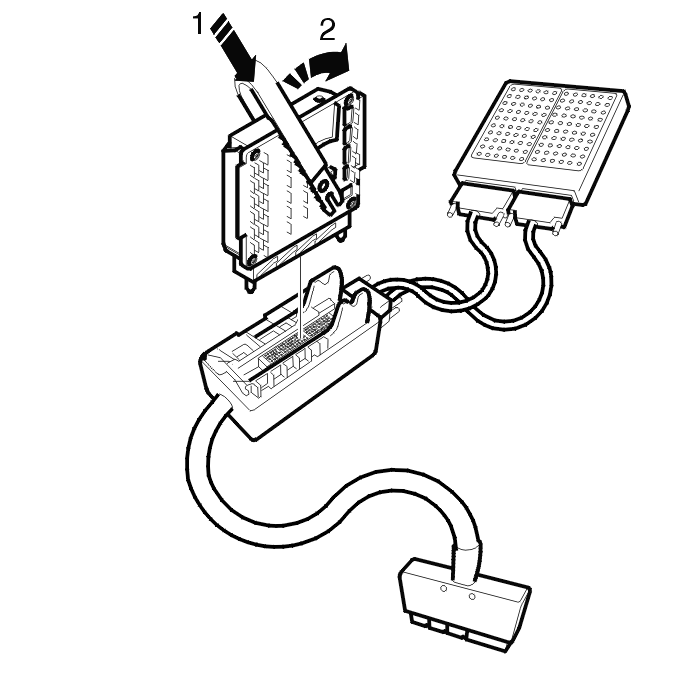

Fig 1: Identifying Adapter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that no pins or sockets are damaged on the connector.
Gently press adapter 9511504 down into the grooves inside the control module box. Press to the limit position.
Insert tool 9995722 around the adapter.
Move the upper section of the tool forwards as far as it will go. Pull the tool up.
