The control module

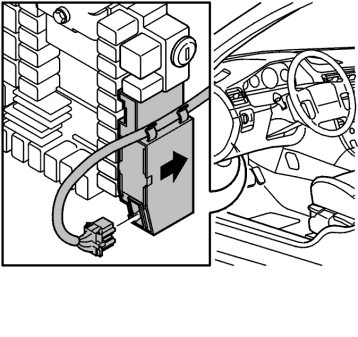

Fig 1: Identifying Control Module Cable In Holder
GLL103217Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the cable in the holder for the control module. Press the connector into place.

Reinstall the control module. Press the module into place until there is an audible click.

To install, reverse the removal procedure
