Replacing relay in engine compartment central electrical unit: Removal

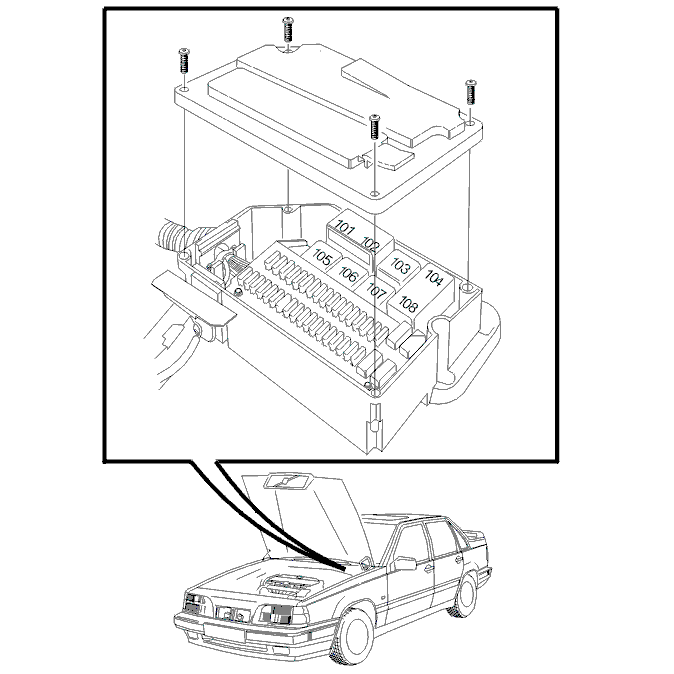

Fig 1: Locating Engine Compartment Central Electrical Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

The central electrical unit is located by the cowl panel on the left or right depending on the model. The engine compartment central electrical unit is located under a cover.

Remove:

• the screws for the cover
• the cover.
