Checking before installing

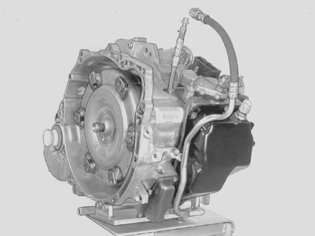

Fig 1: View Of Gearbox Removed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the transmission and engine mating surfaces are absolutely  clean.

Also check that the guide sleeves towards the engine are in position and are free of faults.

Lubricate the holes in the transmission (for the guide pins). Use a little grease.
