Installing components on the engine and sub-frame

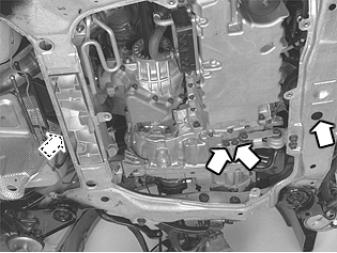

Fig 1: Identifying Engine Pad, Engine Stabilizer Brace And Steering Gear Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• 1 M10 screw for the front engine pad. Tighten.
• screw, 1 x M10, for the rear engine pad
• the mounting for the engine stabilizer brace to the transmission. Use new screws. Tighten according to Summary of tightening torques for specific components .
