Secure The Contact Reel

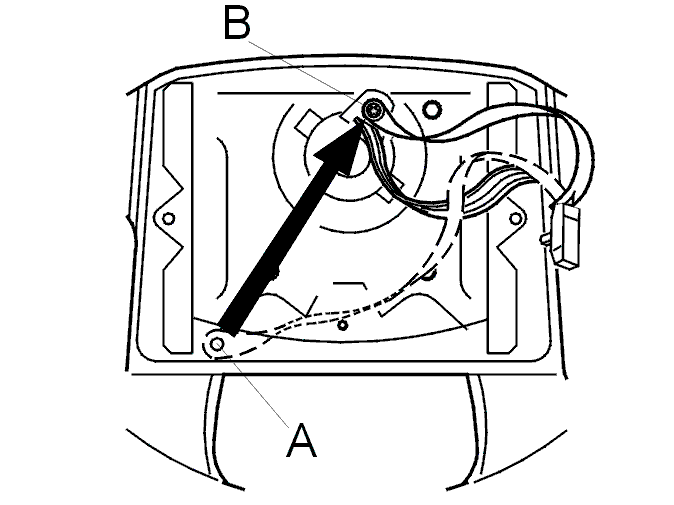

Fig 1: Removing Screw From Parking Position Securing Contact Reel Into Lock Position
GLL102445Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove screw from parking position (A) and secure the contact reel in lock position (B). Do not detach the screw from the plastic strip.

CAUTION:

The steering wheel must never be turned while the contact reel is locked. The contact reel pin will shear off.
