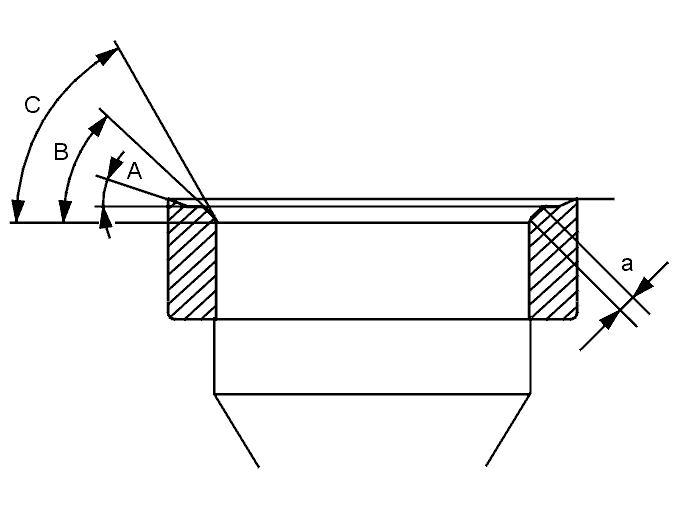

| A |
Upper inlet reduction angle........20°
Upper exhaust reduction angle........15° |
| B |
Inlet and exhaust matching surface angles........45° |
| C |
Lower reduction angle........60° |
| a |
Width of the intake valve seat........1.4-1.8 mm
Width of the exhaust valve seat........1.8-2.2 mm |
