Cylinder Head

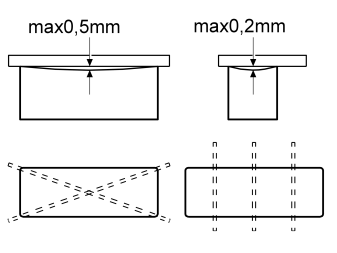

Fig 1: Cylinder Head -- Specifications, Mechanical

Courtesy of VOLVO CARS OF NORTH AMERICA.

Maximum out-of-true

Front-rear........0.50 mm

Lateral........0.20 mm

Cylinder head height........129.0 0.05 mm

Maximum machining........0.30 mm

CAUTION:

Scratches and corrosion to the cylinder head gasket face should only be machined on a flat cylinder head.
