Installing the torque control arm

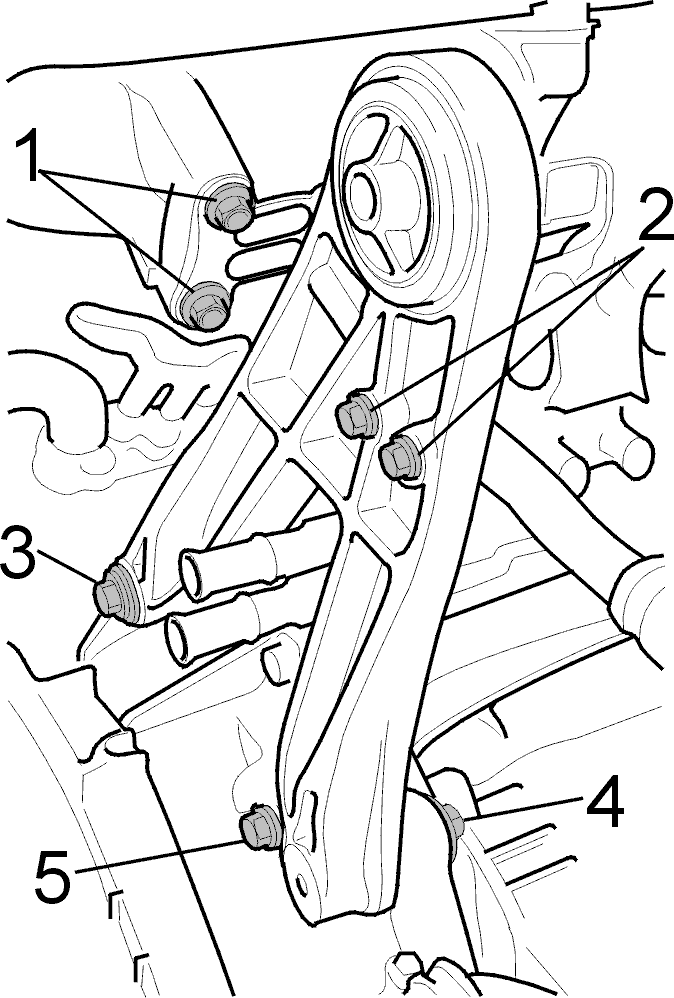

Fig 1: Identifying Torque Control Arm Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the torque control arm on the engine / transmission
• the screws. Tighten the screws (1-2). Tighten to 10 Nm  . Tighten the screws (3-4). Tighten to 40 Nm  .
