Installing the rear engine mounting

Fig 1: Identifying Rear Engine Mounting And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the rear engine mounting on the gearbox
• the 3 x M10 screws for the engine mounting. Loosely tighten the screws for the engine pad/steering gear.

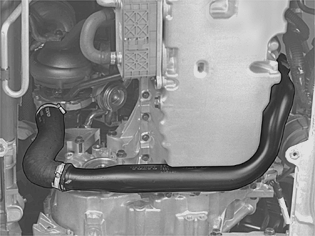

Fig 2: Identifying Charge Air Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the charge air pipe on the engine.
