Clutch pedal sensor, specifications

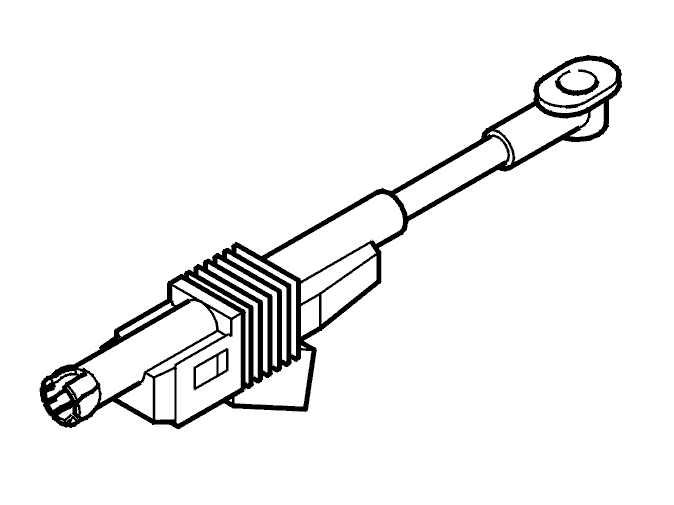

Fig 1: Identifying Clutch Pedal Push Rod & Position Sensor
GLL104307Courtesy of VOLVO CARS OF NORTH AMERICA.

Self-adjusting.

Position (mm) 0 25 50 100
R (Ω) 1500-2500 1000-2000 750-1750 500-1000
