Installing front suspension components

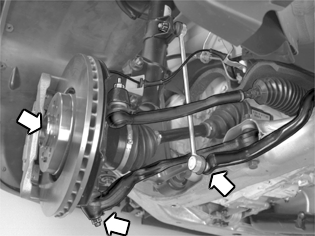

Fig 1: Front Suspension Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: Applies when installing front suspension components on both sides.

Install:

• a new M12 lock nut on the ball joint pinion. Counterhold the ball joint pinion while tightening so that the boot cannot turn. Tighten
• the anti-roll bar link. Use a new M10 lock nut. Counterhold the ball joint pinion while tightening so that the boot cannot turn. Tighten. See Summary of tightening torques for specific components . Tighten the drive shaft screw. Counterhold using a screwdriver in the brake disc vents. Tighten. See Summary of tightening torques for specific components
• the soundproofing over the drive shaft (applies to certain versions).
