Removing the Steering Column Covers

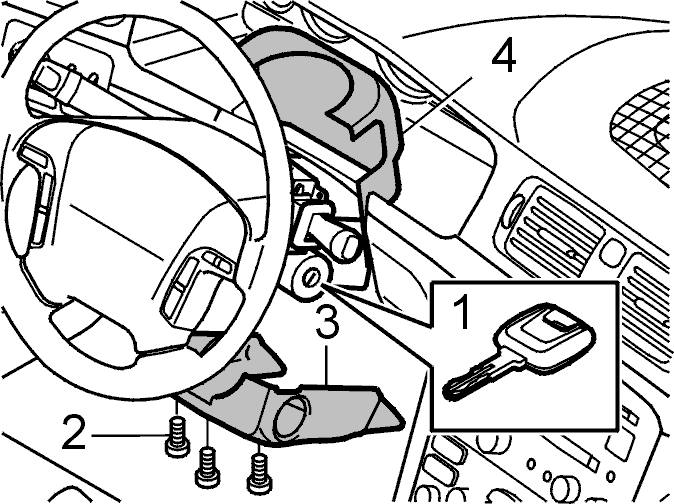

Fig 1: Steering Column Covers
GLL104617Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the ignition key (1).

Remove the three screws (2).

Press in the snap fasteners and remove the lower steering column cover (3).

Pull up the upper steering column cover (4).
