Checking the component

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off.

  Disconnect left seat heater 9/12.

  Check the left seat heater module and connector. Check for oxidation.

  Other information:

  • See Checking wiring and terminals .

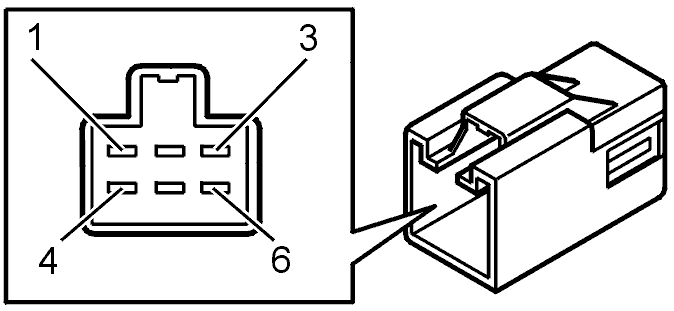

  Fig 2: Identifying Connector Terminals

  Courtesy of VOLVO CARS OF NORTH AMERICA.
  Fig 3: Identifying Ohmmeter

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Was a fault detected?

• YES

  Refer to Verification

• NO

  Refer to Checking the cable
