Installing The Control Module For The Active On Demand Coupling

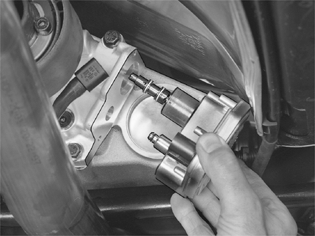

Fig 1: Installing Control Module For Active On Demand Coupling

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the control module with valves in the coupling. Hold the control module pressed against the coupling housing while the 2 screws are installed and lightly tightened alternately. Tighten. See Summary Of Tightening Torques For Specific Components .

Connect the connectors to the control module and the oil pump.

Fill the Active on Demand Coupling with oil. Check the oil level. See Clutch (AOC), Replacing .

Erase any diagnostic trouble codes (DTCs).

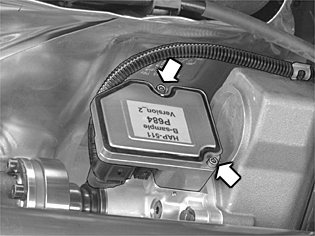

Fig 2: Identifying Active On Demand Coupling Control Module Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ordering software

Order software for the differential electronic module (DEM) according to the table below.
