Checking the wiring and component

Check wiring between transmission connector terminal #d1 and solenoid SLU terminal #1. Check the wiring between transmission connector terminal #d2 and solenoid SLU terminal #2. Check for an open-circuit according to Open-circuit, permanent faults .

Also check against the other cables in the circuit. Use the relevant wiring diagram.

Check the solenoid SLU by measuring the resistance between terminals #1 and #2. The resistance should be 5-5.6 Ω at 20°c. Replace the transmission control system if the resistance is incorrect.

Other information:

• To disconnect the transmission connectors, see Connectors, transmission, disconnecting / connecting
• To replace the transmission control system, see Solenoid control system, replacing
• To replace the cable harness for the control system, see Cable harness/oil temperature sensor, replacing
• For information about signals, see Signal description. Transmission control module (TCM) .

Fig 3: Identifying 8-Pin Transmission Connector D Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

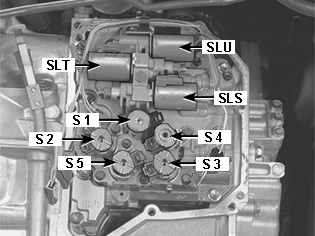

Fig 5: Identifying S1-S5, SLT, SLU And SLS Solenoids

Courtesy of VOLVO CARS OF NORTH AMERICA.

Refer to Resetting the adaptation
