Keypad unit, steering wheel, replacing: Keypad

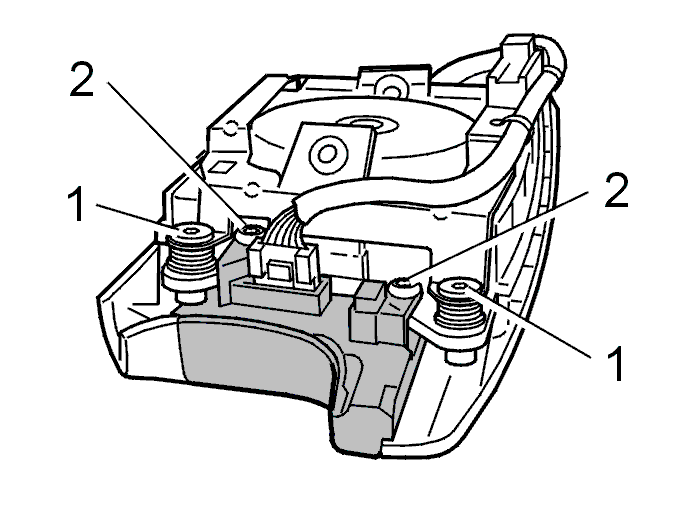

Fig 1: Steering Wheel Keypad Unit, Bracket And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the four screws for the bracket (1) (10 Nm)
• the two screws for the keypad kit x2 (2) (2 Nm)
• the two connectors for the keypad.

Install in reverse order
