Checking Component And Wiring

Check cable between engine control module (ECM) #A7 (#A7) and engine cooling fan (FC) relay #1B for an intermittent short-circuit to ground according to Short-circuit to ground, intermittent faults .

Remedy as necessary

Other information

• Connecting the breakout box/accessing the control module, see Connecting the breakout box .

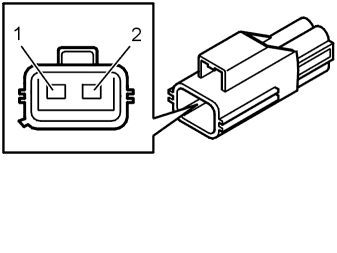

Fig 1: Identifying Terminal Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohm Meter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Electronic Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue
