Checking The Connector: Notes

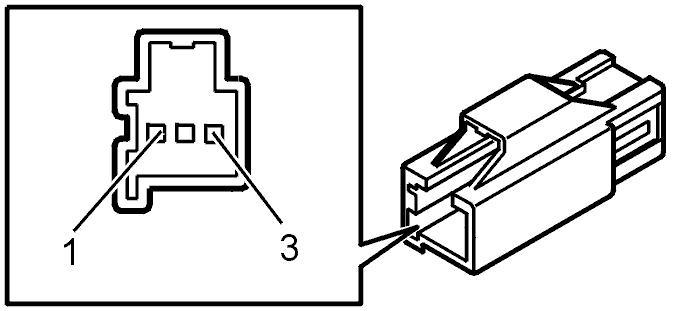

Check the ground lead between control module terminal B4 (#B14) and fuel tank pressure sensor connector terminal 1. Check the ground lead between control module terminal B31 (#B41) and fuel tank pressure sensor connector terminal 2 for an open-circuit according to Open-circuit, permanent faults .
Check the power supply cable between control module terminal B10 (#B20) and fuel tank pressure sensor connector terminal 3 for an open-circuit according to Open-circuit, permanent faults .
Check the signal cable between control module terminal B31 (#B41) and fuel tank pressure sensor connector terminal 2 for a short-circuit to supply voltage according to Short-circuit to supply voltage. Permanent faults .
HINT: Use a test screwdriver with at least a 3W bulb to determine if the cable is short-circuited to supply voltage
Other information
- Connecting the breakout box / accessing the control module, see Connecting the breakout box .
- For information about signals, see Signal specification .
- Continue
Refer to Verification
