Checking wiring and components

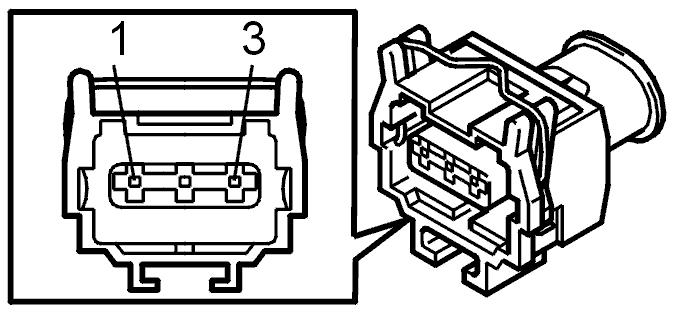

Check reference voltage cable between control module connector #A58 (#A60) and manifold absolute pressure (MAP) sensor connector terminal 3 for an open-circuit according to Open-circuit, permanent faults and a short-circuit to ground according to Short-circuit to ground, permanent faults .
HINT: With the ignition on and manifold absolute pressure (MAP) sensor connector disconnected the voltage between terminal 3 and ground terminal should be approximately 5V.
Check signal cable between control module connector #A23 (#A23) and manifold absolute pressure (MAP) sensor connector terminal 1 for a short-circuit to ground according to Short-circuit to ground, permanent faults .
HINT: With the ignition on and manifold absolute pressure (MAP) sensor connector disconnected the voltage between terminal 1 and ground terminal should be approximately 5V.
If wiring is OK, try a new manifold absolute pressure (MAP) sensor.
Remedy as necessary.
Other information:
- To connect the breakout box, see connecting the breakout box
- To access/replace the control module, see Replacing the engine control module (ECM)
- For information about signals, see Signal specification
- To localize the manifold absolute pressure (MAP) sensor, see Location of components .
- Continue
Refer to Verification
